stainless steel ball valves
Valtorc stainless steel ball valves are available in 304 or 316 stainless steel in sizes from 1/4", 1/2", 3/4", 1", 2", 3", 4", 6", 10" up to 12" and beyond in various connection ends such as: NPT (threaded), flanged, socket weld, butt weld, and tri-clamp. Offered in 2-way standard or optional multi-port 3-way or 4-way valves. Our stainless steel ball valves are ideal for water, chemical, gas, steam, petrochemical and general use/utility services and applications. Our stainless steel ball valves are ARRA compliant and always shipped out of our USA factory location. If there is a ball valve you have question on, or if you do not see a valve that meets your specifications, please contact our sales staff for immediate assistance.
304 Series
stainless steel ball valves control valve holds 18% chromium and 8% nickel while 316 Series stainless steel control valve holds 16% chromium, 10% nickel and 2% molybdenum. The molybdenum is added to help oppose erosion to chlorides (like ocean water and de-icing salts).

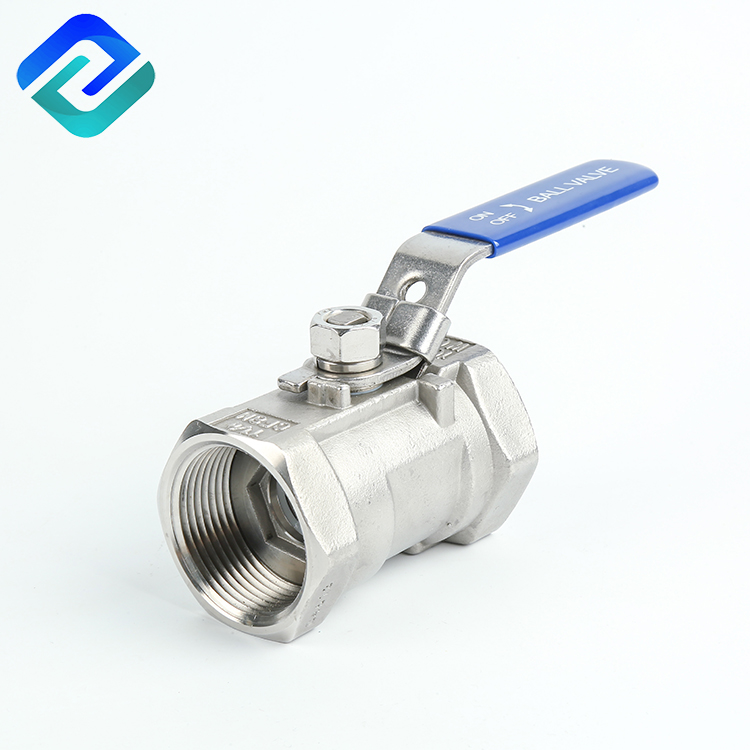

GENERAL PURPOSE THREADED STAINLESS STEEL BALL VALVE SERIES
1/4" - 2" (inches) sizes available
Steam rating: 125 PSI WSP
Blow-out-proof stem design
Padlocking device
Body: ASTM A351 Gr.CF8M
Stem: SS316
Seat: PTFE
End Connections: Threaded End Ball Valves
Working Pressure: 1000 PSI
Temperature Range: -50° to 400° F
TEST STANDARD:API598
Vacuum Service to 29" Hg
Threaded Type: ANSI B 1.20.1 (NPT), DIN 259/DIN 2999, IS0 228, BSP, PT
