Lower temperature will lower the starting performance of engine. You may need an auxiliary device for starting a diesel. The Dalin mechanical spring starter has passed the starting test in the temperature of 40 degrees below zero Celsius. A micro-lock switch has been installed for preventing two starters working in the same time and can substantially lower the damage rate. You just need 20 seconds to wind and trip the spring starter, less time in with smaller model.
Fit For Various Engine Brands
The Dalin spring starter can be used for Cummins, Caterpillar, John Deere, Perkins, Volvo, Deutz, Scania, Weichai, Yuchai, Huachai, Hechai, Changchai, etc. Designing for models which we have not met before with relevant technical data also is available.
High Quality Component
Most suppliers of the Dalin spring starter obtained ISO9001 OR TS16949 certificate of quality system. And each component will go through a strict inspection process before we use it.
Wide Application

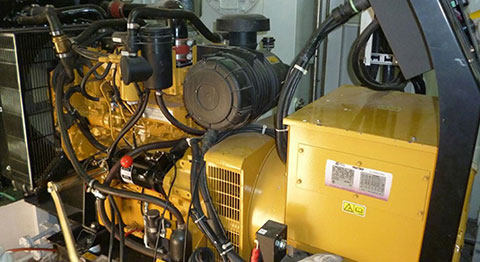

Pumps
The mechanical spring starter can be Applied to fire pumps: Mobile fire station ,Emergency fire pumps

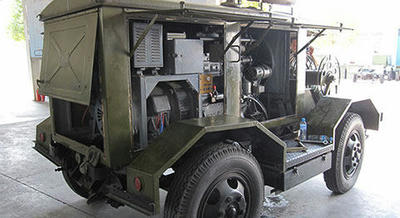

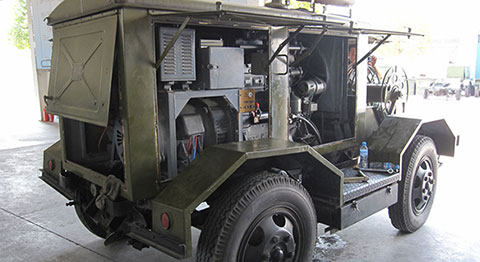

Military
Dalin Spring starter can be applied to military：Military Off-road vehicles , Military mobile power station

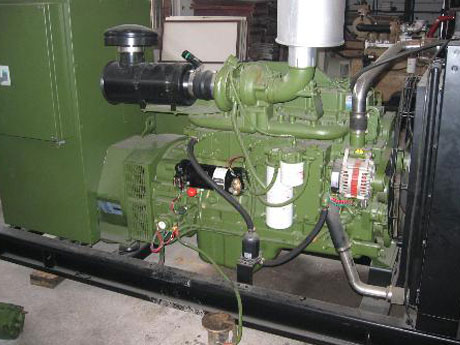

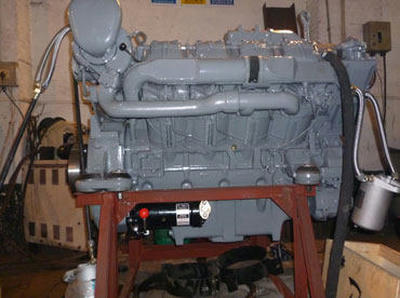

Marine
Dalin Spring starter moter can be applied to marine : Marine emergency generator set , Lifeboat
Emergency Rescue
Emergency rescue also is the mechanical starter application: explosion-proof generator set , Mobile rescue vehicle.
The disc spring starter is a special starting system, which stores the energy of manpower in disc springs and releases it once to start a larger engine. (often called hand starter, spring motor, mechanical starter, manual starter, etc.)
Why should use the Dalin disc spring starter?
As we all know that the electric starter sometimes needs maintenance. Our starter is designed to replace it when it is out of battery or failure. Unlike air starter or hydraulic starter, spring starter requires no external power systems. They are maintenance-free, compact, dependable and water-proof, the preferred choice for back-up starting.
The application of the Dalin disc spring starter
All fields which diesel engines apply to. Mainly in marine emergency gen-set, lifeboat, military power station, fieldwork, emergency generator vehicle, diesel-powered fire pump, emergency rescue, agriculture equipment, mine, chemical plant and explosion-proof generator set.
The displacement of applied engine
Displacement between 0.5L-38L, the world record starting power of spring starter.
Single spring starter: up to 19L(L6) and 30L(V16)
Spring starter group system: up to 26L(L6) and 38L(12), our target is to start V16 engine with the displacement of 50L.
More knowledge about Dalin disc spring starter
The Dalin mechanical spring starter has passed the world's first unique simulated condition test bench. Each starter will go through the pre-grinding test. Fully inspecting all indexes and the accuracy of assembly. And each product has its own starting performance test record.
It is maintenance-free with advanced anti-wear grease.
Because one engine model may have different ring gear and flywheel housing. And the installation place for spring starter motor may vary. Besides, the power of the spring starter depends on various engine load. One spring starter is customized for one model of an engine series. It may be not suitable for another engine model.

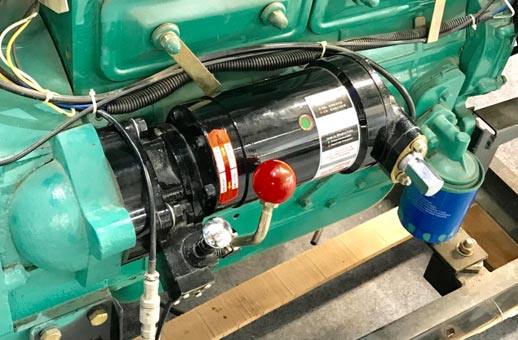

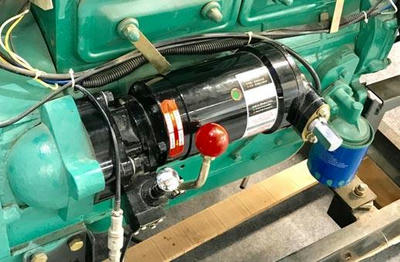

Dalin Mechanical Spring Starter
1. What is Dalin Mechanical spring starter?
It is a kind of hand crank starter, which can transform manual cranking energy into disc spring potential energy. It can start the diesel engine with the manual cranking energy.
2. The Advantages of Spring Starter:
Dealing with the problem which the electric starter is out of electricity. It can make the engine started without battery or other external systems (such as gasholder, cable, air compressor, manometer, accumulator, etc.). There is no cost for maintenance of it, and it has an explosion-proof structure.
3. Instructions of Dalin Spring Starter:
a. The single starter can start 6 cylinders in-line engine with displacement up to 19L, 16 cylinders V-type engine with displacement up to 30L. 0 group system can start up to 50L.
b. The Mechanical Spring Starter applies to emergency generator sets, lifeboats, firefighting sets, emergency pump sets, construction machines, power plants, irrigation and drainage device, etc.
c. Our products are available for the engines whose displacement is under 50L. There are various mechanical spring starters or group systems for your reference.

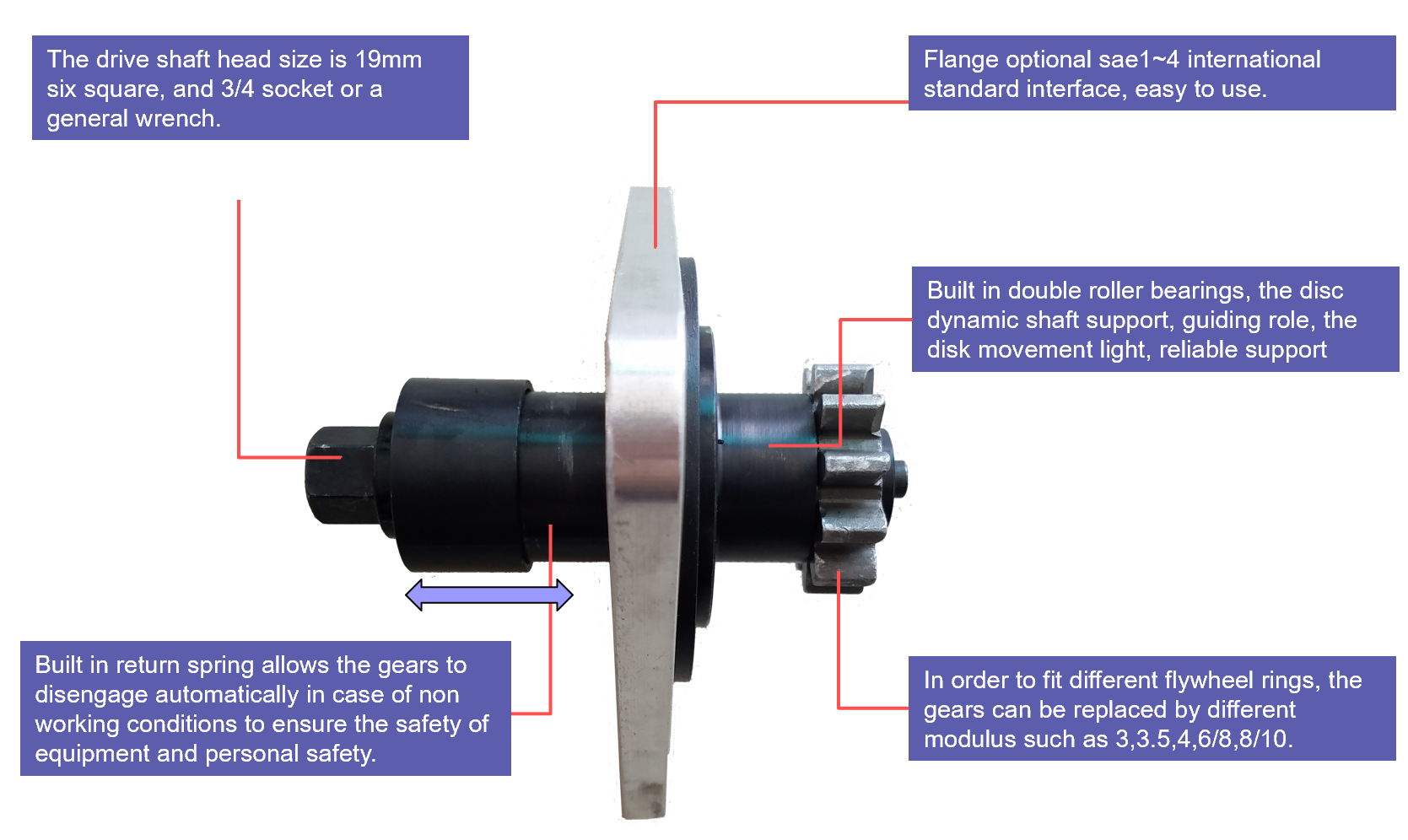

Dalin Barring Tool
Dalin Barring tool (Easy to use engine barring tool) with the feature of Universality, Lightness, Safty, Convenience.
Universality
The gear can be replaced according to different flywheel ring gear matching. The flange adopts a general international standard, fit all the installation interface.
Lightness
Dual bearing support, guide and reliable rotation light. Aluminum Alloy flange, portable.
Safty
The automatic reset device, to avoid the nonworking state under the gear caused by damage to the equipment. The flange boss can be accurately positioned disc shaft supported by a bearing, will bring hidden defects axis tilt positioning and elimination process.
Convenience
Placed in the toolbox, easy to store and carry. No other energy.
Research background
In engine maintenance, the testing process, commonly used way of using steel turning crowbar engine leveraging rotating parts, are also part of the engine with a simple turning tool, its operation process, low efficiency, easy damage, inconvenient carrying, poor versatility, there are security risks and other defects. Look forward to a convenient, durable, safe device to replace the old way of turning.
1. All the Dalin Mechanical Spring Starters have passed the test on the unique spring starting test bench, ensuring that all the products are qualified and there are detailed test data for each product (such as torque, energy, peak, speed, input/output ratio, conversion rate, stability ratio, curve, etc.).
2. All the Spring Starters are equipped with micro-lock preventor, which helps to effectively avoid maloperation on the double-start engine. It can extend the life of the engine.
3. We use maintenance-free grease within each Spring Starter, and the surface finish of our products is a baking finish which is fireproof, oilproof, waterproof and anti-corrosion, with salt spray corrosion resistance.
Product Features
1. Product Function of Dalin Spring Starter :
The starter can compress the springs and store high energy within the unit, then release energy rapidly to start the engine.
It only needs hand cranking and releasing.2. Typical Features of Dalin Spring Starter :
a. Adaptability (Adapt to harsh working conditions, including the conditions with spark, chemistry and wet.)
b. Safety (It is a type of Mechanical Starter, which can be directly operated by people.)
c. Simple and Complete Structure (Independent hand-cranking working system, with no electricity, gas or other energy systems.)
1. What is the engine starter?
As we all know, various engine motors have been used to every corner where modern production exists. And there should be a power system for an engine start, such as a battery or other external systems (gasholder, cable, air compressor, manometer, accumulator, etc.).
2. What is Mechanical Spring Starter?
Even the engine motor has been widely used, there are still some common problems for engine motor. These normal systems are easy to be broken after working day and night. They also can't work well in those worse conditions, overheated or too cold are both difficult for an engine to start. So how can we start the engine in those situations? Mechanical spring starter is the ideal choice for you to solve these problems; it is a kind of engine starters. It is easy to install and use, which can transform manual cranking energy into disc spring potential energy and start the diesel engine with the manual cranking energy.
1. What is the advantage of Mechanical Spring Starter?
a. Adaptability (Adapt to harsh working conditions, including the conditions with spark, chemistry and wet.)
b. Safety (It is a type of mechanical starter, which can be directly operated by a human.)
c. Simple and Complete Structure (Independent hand-cranking working system, with no electricity, gas or other energy systems.)
d. Swift (Easy to operate, and it can release the energy rapidly.)
e. Maintenance-free (Resistant high/low temperature, corrosion resistance. There is no maintenance cost.)
f. Reliability (Reasonable design, mature technology, high-quality material, strict control.)
g. Prevention (Prevent misoperations on dual motor engines.)
2. How can I install a Mechanical Spring Starter?
Each product will be equipped with instructions. Before installation, you need to check how many bores in engine flywheel housing; single bore or twin bores. For an engine with one starter bore, the Dalin spring starter stands by to replace the electric starter when needed. For an engine with twin bores, it is necessary to confirm the mounting bore for the spring starter. So please make sure you have talked with our sales before purchasing.
