Dalin mechanical spring starter can start a diesel engine with manpower only. It's a good mechanical starting device and the best diesel engine emergency starting solution.
The Feature of Dalin mechanical spring starter
Reliability
Simulated condition bench test shows a trouble-free experiment for more than 3000 starting cycles. In the field, customer's feedback: Dalin spring starter can work more than 10 years and longer.
Stability
The unique spring starting condition simulation test bench to do independent test and check/record automatically for every starter.
Cost Performance
All parts are made from mature material, manufactured by qualified heat treatment and machining process. On the same power level of the starters, Dalin spring starter costs less than similar competing starter.
More powerful
Dalin spring starter has exceptional starting ability especially on large displacement engine( 6 cylinder can be up to 19L, 16 cylinders can reach 30L, Max can start Cummins K50).
Protector
As pioneer of spring starter protector, it effectively reduces mal-operation failure ratio and make sure safety of operation.
Service
Humanization after-sales support, resolve customer trouble back at home.
Contact information
Chongqing Starting Power Unit Co., Ltd
Address: Chenjiaqiao Town, Shapingba District, Chongqing City, China(401331)
Sales: Julie He(Ms.), Tel/Whatsapp/Wechat: +86-13637706003
sales1@cqstart.com
Marketing : Harland Wang(Mr.), sundayritian@cqstart.com
Dalin machanical spring starter can start a disel engine with manpower only. It's a good machanical starting device and the best diesel engine emergency starting solution.
The Feature of Dalin machanical spring starter
Reliability
Simulated condition bench test shows a trouble-free experiment for more than 3000 starting cycles. In the field, customer's feedback: Dalin spring starter can work more than 10 years and longer.
Stability
The unique spring starting condition simulation test bench to do independent test and check/record automatically for every starter.
Cost Performance
All parts are made from mature material, manufactured by qualified heat treatment and machining process. On same power level of the starters, DaLin spring starter costs less than similar competing starter.
More powerful
Dalin spring starter has exceptional starting ability especially on large displacement engine( 6 cylinder can be up to 19L, 16 cylinders can reach 30L, Max can start Cummins K50).
Protector
As pioneer of spring starter protector, it effectively reduces mal-operation failure ratio and make sure safety of operation.
Service
Humanization after-sales support, resolve customer trouble back at home.
Contact information
Chongqing Starting Power Unit Co., Ltd
Address: Chenjiaqiao Town, Shapingba District, Chongqing City, China(401331)
Sales: Julie He(Ms.), Tel/Whatsapp/Wechat: +86-13637706003
sales1@cqstart.com
Marketing : Harland Wang(Mr.), sundayritian@cqstart.com
Dalin machanical spring starter can start a disel engine with manpower only. It's a good machanical starting device and the best diesel engine emergency starting solution.
The Feature of Dalin machanical spring starter
Reliability
Simulated condition bench test shows a trouble-free experiment for more than 3000 starting cycles. In the field, customer's feedback: Dalin spring starter can work more than 10 years and longer.
Stability
The unique spring starting condition simulation test bench to do independent test and check/record automatically for every starter.
Cost Performance
All parts are made from mature material, manufactured by qualified heat treatment and machining process. On same power level of the starters, DaLin spring starter costs less than similar competing starter.
More powerful
Dalin spring starter has exceptional starting ability especially on large displacement engine( 6 cylinder can be up to 19L, 16 cylinders can reach 30L, Max can start Cummins K50).
Protector
As pioneer of spring starter protector, it effectively reduces mal-operation failure ratio and make sure safety of operation.
Service
Humanization after-sales support, resolve customer trouble back at home.
Contact information
Chongqing Starting Power Unit Co., Ltd
Address: Chenjiaqiao Town, Shapingba District, Chongqing City, China(401331)
Sales: Julie He(Ms.), Tel/Whatsapp/Wechat: +86-13637706003
sales1@cqstart.com
Marketing : Harland Wang(Mr.), sundayritian@cqstart.com
What is Dalin spring starter
A kind of mechanical starter which transform manual cranking energy into dis spring potential energy. The potential energy can be released all in once so as to starter engine.
Advantages
Complement electric starter defect(battery needs to be maintained frequently). Ensure that engine can be started when the battery lack of power. Unlike air starter and hydraulic starter, Dalin spring starter is a complete system. It doesn't need maintence and other auxiliaries(like battery, power generator, compressed air tank, hydraulic actutor and valves). and it's with natural explosion-proof structure.
How to use it on the engine

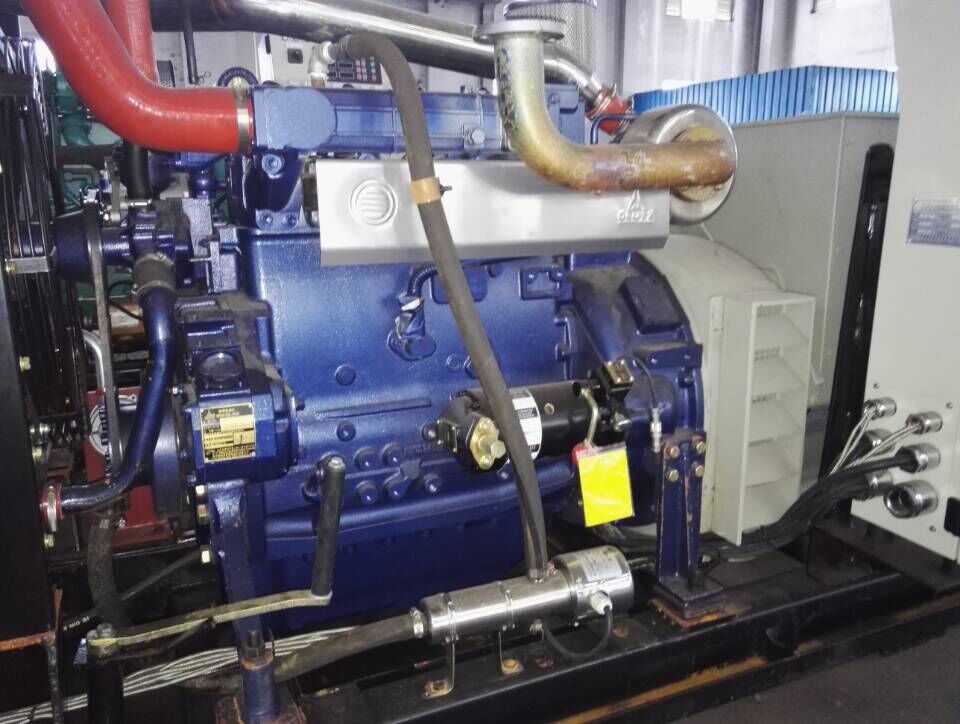

(1) Most of engines have two starter bores on flywheel housing with an electric starter and Dalin spring starter either on same side, or on diffrent sides.
(2) For engine with one starter bore, the Dalin starter stands by to replace the electric starter when needed, and is installed in same place as electric starter located.
Characteristics
Adaptation(Adapt to various conditons including where is sensitive to spark chemisttry and moist atmosphere)
Safe(A mechanical starting device which is opereated by humanly possible indirect hand cranking)
Compact structure(independent work system without electricity/gas/liquid system configuaration)
Cranking device(as a tool to slowly crank the engine)
Fast(complete energy storage and release process by convenient human operation)
Manitennace-free(best lubricated antifriction corrision resistant)
Protector(effectively reduce the mal-operation failure ratio and dual starter engine)

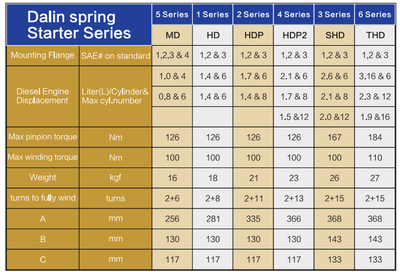

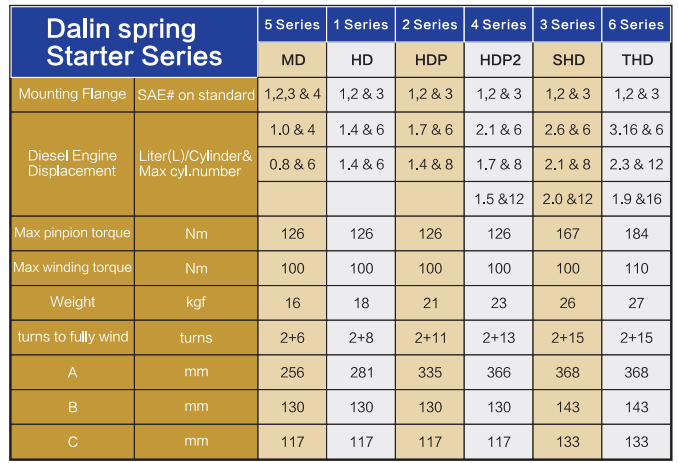

Parameter List
To learn more information about Dalin spring starter, please visit the company introduction page of Dalin spring starter motor
The brief introduction of Dalin mechanical spring starter as below is for your reference.
0 Group System Dalin Hand Crank Inertia Stater
DALIN 0 Group System is consist of several spring starters in parallel through special way, those spring starters can be any 2 or more types from our products. Which can increase the ability of starting the engine. It can be used to those engines whose displacement is up to 50L.
1 Series Dalin Mechanical Starter(4-7.5L)
DALIN 1 Series Inertia Starter, a kind of mechanical spring starter with small displacement. Which applies to 4-7.5L displacement engines, such as CAT C4.4 , Perkins 1104 , Cummins 4B/6B , Weichai WP4/6 , Deutz BF3L913 , Yuchai YC4F/4D.
2 Series Dalin Spring Starter (7.5-11L)
DALIN 2 Series Mechanical Spring Starter, as known as Spring Starter. The application displacement of it is 8-13L, it is available for these engines: Cummins 6C , Cummins QSB7 , John Deer 6068 , Weichai WP10/12 , Deutz BF6M1015 , MWM TBD234 V6/V8/12.
3 Series Dalin Engine Starters (13-16L)
DALIN 3 Series Engine Starters are a kind of Mechanical Spring Starter Which can be used to big displacement engines, the range is 14-30L. Available common engines model:Cummins NT855 , Cummins K19 , Scania DI13 , Vman D30 , Deutz BF12M1015 , Yuchai YC6T , Wudong WD287.
4 Series Dalin Mechanical Starter(10-13L)
Dalin 4 Series mechanical starter is applied to 8-13L displacement engines such as Cummins 6C , Cummins QSB7 , John Deer 6068 , Weichai WP10/12 , Deutz BF6M1015 , MWM TBD234 V6/V8/12. The Spring Starter has the feature of safety, simple and complete structure and maintenance-free with high-quality material, Reasonable design and strict control.
5 Series Dalin Inertia Starter (1-4L)
DALIN 5 Series Inertia Starter is used to common small displacement engines and the application displacement of mechanical starter is 1-7.5L. The following engines are applicable: CAT C4.4 , Perkins 1104 , Cummins 4B/6B , Weichai WP4/6 , Deutz BF3L913 , Yuchai YC4F/4D.
6 Series Dalin Engine Starter(16-30L)
Dalin 6 Series Engine Starter which is one kind of hand crank starters. The mechanical starter can apply to 14-30L displacement engines. For example: Cummins NT855 , Cummins K19 , Scania DI13 , Vman D30 , Deutz BF12M1015 , Yuchai YC6T , Wudong WD287.
W Series Dalin Mechanical Starter(Speicial)
Dalin W Series Mechanical Starter is our special small type engine starter. The spring starter motor can apply to those engines, the space of which is narrow for install, used to some small engines also.
Learn more detail information, please visit the Dalin product page of Mechanical Spring Starter
