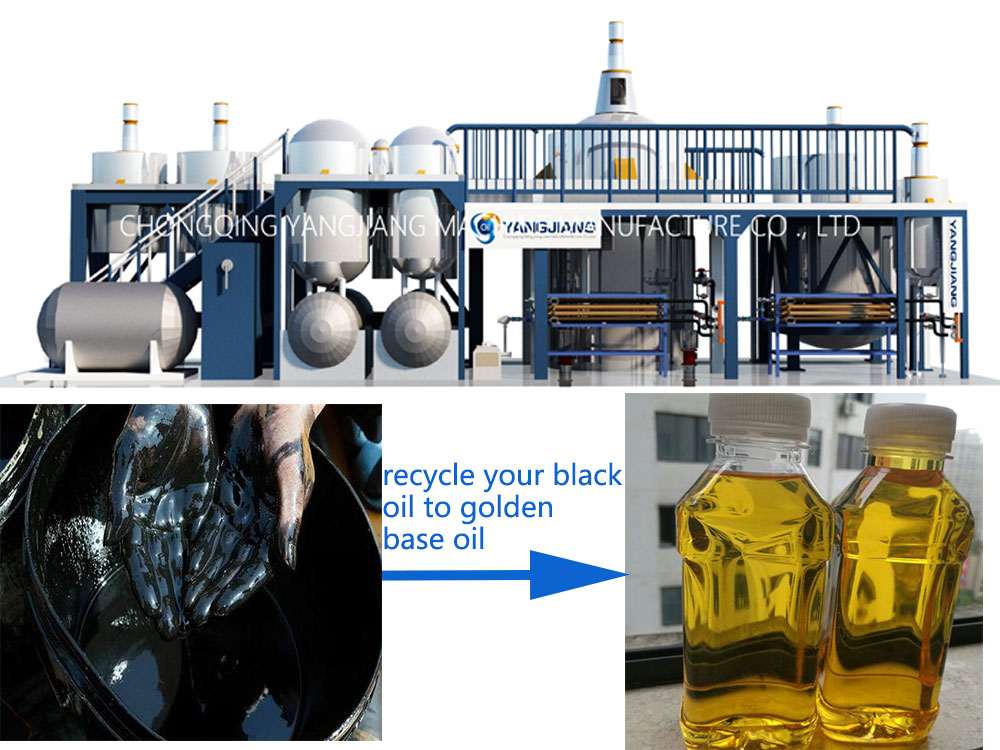

After we collect the waste engine oil, the next step is recycling the oil. The best method is using the engine oil recycling machine to get clean base oil. Today we will introduce the engine oil disposal equipment, which is produced by YANGJIANG Machine Manufacture Co., Ltd, one of the most famous engine oil recycling plant manufacturers. The engine oil treatment plant could recycle the waste engine oil, waste motor oil and waste lubricating oil. The product series of the engine oil recycling machine adopts the highest-quality material to manufacture it. The price of the plant is low and many users are satisfied with our engine oil recycling equipmentafter using our products. The engine oil treatment equipment is worthy of the users' trust.

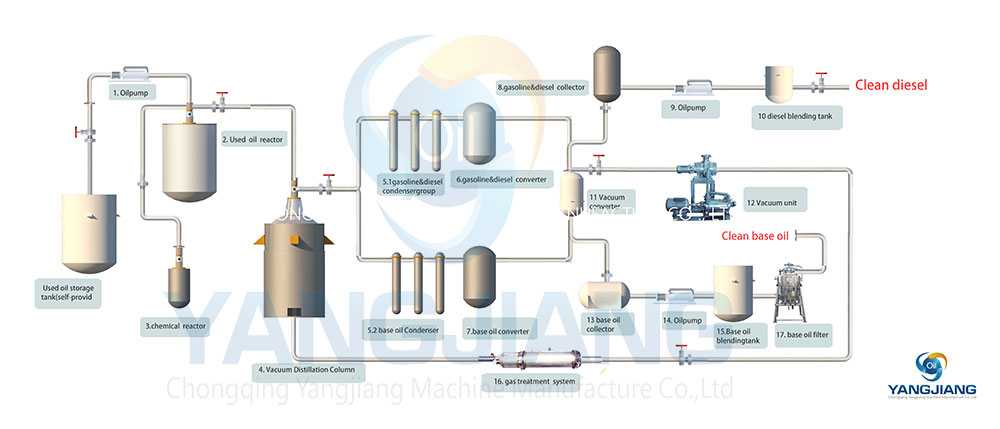

You may ask how the engine oil recycling machine work. Let me list the practical steps of the equipment for you.
1. Water removal. After the waste oil is collected to the oil sump for water removal, it is placed in the oil refining pot. Then the waste oil is heated to 70-80 ℃ and stopped heating. Let it stand for about 24 hours, drain the surface water, and then slowly heated to 120 ℃ (when the oil temperature is close to 100 ℃, it should be slowly heated to prevent the oil from boiling and overflowing), so as to evaporate the water. After about two hours, the oil does not turn and black oil gas emerges from the oil surface. Yes.
2. Acid pickling. When the oil is cooled to average temperature, slowly add sulfuric acid under stirring (the concentration is about 92-98%). The acid consumption is generally 5-7% of the oil consumption (determined by the degree of oil contamination). After adding the acid, continue stirring for half an hour, and then stand for about 12 hours to drain the acid residue.
3. Alkali washing. Raise the temperature of the engine oil after pickling to 80 ℃, add soda ash (Na2CO3) under the agitation, mix it well, let it stand for 1 hour, and then use the test paper to check it as neutral, and then stand for more than 4 hours to drain the alkali slag.
4. Adsorption of activated clay. Raise the temperature of oil to 120-140 ℃, add activated clay under constant temperature and agitation (the dosage is about 3.5% of the oil quantity). After adding activated clay, continue to stir for half an hour, and stand at a constant temperature for one night under 110-120 ℃, and filter while hot the next day.
5. Filtration. The oil filter can be used for filtration, and qualified oil can be obtained after filtration. If there is no oil filter, the bag hanging method can also be used. The above is the general operation process of oil purification, but it should be determined according to the actual situation. If there is little impurity water, the first step can be omitted; if the color of oil is standard after acid and alkali treatment, it is unnecessary to use active clay to decolorize and absorb.
the price of engine oil recycling machine is affordable. If you have any questions about Yangjiang’s equipment, please feel free to ask us, we will be happy to answer for you.
Good storage of waste oil is very important for engine oil recycling. Why is the proper management of waste engine oil such an important issue? It is essential because waste engine oil contains metals, chlorinated hydrocarbons and other organic compounds, including many that are listed as priority pollutants by the U.S. Environmental Protection Agency. If the waste engine oil is mismanaged, the effects upon the environment will be detrimental. Since waste engine oil is generated in large quantities, estimating more than 1.5 billion gallons per year.
More than half of drivers change their waste motor oil by themselves. It is important to recycle waste oil in cars, trucks, motorcycles, yachts, recreational vehicles, or mowers. If you drive your car to the car service, you can be pretty sure that they will recycle the oil they change.
Both waste oil and waste oil are essential resources. The waste oil you bring to the collection point can be recycled into new products for heating or asphalt production or used in power plants to generate electricity. Burning just two gallons of waste oil at a power plant can produce enough electricity to power an average home for 24 hours.
If you change the oil on your car, truck, motorcycle, boat, recreational vehicle or mower, be sure to handle it carefully and handle the used oil and recycle correctly. Follow these steps to clean and change oil, so as to prevent pollution and save energy, and realize a safer and healthier tomorrow.
Step 1: drain the oil
Pour the oil into an oil pan that can hold twice the capacity of the engine crankcase. When the engine temperature increases, drain the oil to ensure that all the sludge flows out smoothly. Please be careful that the oil will burn! Until the oil drops are slow to intermittent, replace the oil drain plug, and carefully move the oil pan to a position where the oil can be safely poured into the container.
Step 2: Carefully transfer the dirty oil
Using a funnel, pour the oil into a clean, leakproof container with a sealed lid - a hard plastic container like plastic milk can work well. Be careful not to overfill the container!
Do not place used oil in containers containing chemicals such as bleach, pesticides, paint, or antifreeze, which may contain residues of contaminated oil. Avoid paint cans and other metal containers. And then sealing the bottle and label it "used oil".
Power steering fluid, transmission fluid and brake fluid can also be brought to the old oil collection point in the separator container (do not mix with the old oil).
Never mix solvents, gasoline or antifreeze with used oil. Once polluted by these products, it is difficult or impossible to recover used oil. If your oil is contaminated, label the container and send it to your local household hazardous waste collection point for disposal. Don't take it to the oil recycle bin, where it may contaminate the oil tank, making the contents irrecoverable and expensive to handle.
Step 3: Drain the oil filter
With the used filter hole side down, drain the oil into the storage container for recycling. Allow the filter to drain overnight or at least 12 hours in order to remove oil.
Place the old filter in a leakproof container (coffee can with a lid or resealable plastic bag). The oil filter may contain 2 to 8 ounces of oil, even if drained!
Replace the old oil filter with a new one. In order to support the recycling program, oil filters are purchased from businesses that accept the recycling of used oil filters.
The price of engine oil recycling machine is affordable. If you have any questions about Yangjiang’s equipment, please feel free to ask us, we will be happy to answer for you.
The following is some necessary information about the engine oil recycling plant and the recycling process of the machine.
1.What is waste engine oil?
If we want to change waste engine to clean oil, we first need to know what engine oil is. The Wikipedia definition of engine oil is that engine oil is the same as motor oil and lubricating oil. We all know that the car or large machinery needs the engine oil to run. When we are using the engine oil, the clean engine oil may mix with air, moisture, metal scrap, or other impurities, and then the pure engine oil will get dirty. In order to maintain the best performance of the car or machinery, the user needs to replace the used engine oil.
According to the statistical data of forecast of demand and analysis report of strategic investment planning of China's Automobile Manufacturing Industry Released by the Prospective Industry Research Institute, the global automobile market sales volume in 2012 has reached 82.1664 million, showing a trend of annual growth. In 2016, the sales volume of the worldwide automobile market exceeded 90 million, and by 2017, the sales volume of the global automobile market increased to 96.8044 million, up 3.14% year on year. Affected by the global economic situation, the global automobile market is in cold weather, ending the seven-year rising trend. In 2018, the global automobile market sales reached 95.6 million, down 1.24% year-on-year. In the first half of 2018, the global market performed relatively well and maintained a certain growth momentum. Car ownership is increasing year by year, which means the demand for engine oil is also increasing year by year. The more car users use motor oil, the more waste motor oil is produced.
2.Where does waste engine oil come from?
Waste engine oil comes from an array of different sources, including do-it-yourselfers, auto shops, manufacturing companies, electric generating stations, HVAC companies and mining/smelter companies.
The waste engine oil will only get dirty and will not wear. Waste engine oil is mainly produced in the process of automobile maintenance and disassembly, as well as the production and processing of industrial enterprises. It is a typical waste oil in waste mineral oil. It contains a variety of toxic and harmful substances, such as heavy metals, benzene, polycyclic aromatic hydrocarbons, etc., which will cause water and soil pollution, damage the normal living environment of organisms, and cause biological dysfunction. On the other hand, waste engine oil has a high recovery value, which can be regenerated into a base oil, fuel oil and diesel oil through appropriate regeneration technology.
To disposal of the waste engine oil, the best way is using the engine oil recycling machine to turn the waste engine oil into clean oil such as base oil, fuel oil and diesel oil.
The price of engine oil recycling machine is affordable. If you have any questions about Yangjiang’s equipment, please feel free to ask us, we will be happy to answer for you.
Refining and reusing used motor oil is more preferable than processing, and it can bring huge environmental benefits. The recovered waste engine oil can be re-refined into new oil, processed into fuel oil, and used as raw materials in the petroleum industry.
If used oils (such as engine oil, hydraulic oil, and gear oil) from automobiles, bicycles, or lawn mowers are not properly recycled or disposed of, they may pollute the environment. Waste oil must be properly managed by the local waste management department or car repair shop to prevent environmental pollution. There is a similar waste problem with the second mobile phone oil filter. If drained properly, they can be safely recycled or disposed of.
Many reasons for the reuse and recycling of used oil include:
Recycling used oil prevents it from contaminating soil and water.
Oil does not wear out, it only gets dirty, so recycling can save valuable resources.
It takes less energy to produce a gallon of refined base oil than crude base oil.
One gallon of used engine oil provides the same 2.5 quart of lubricant as 42 gallons of crude oil.
Waste oil can be re-refined into lubricants, processed into fuel oil, and used as raw materials in the refining and petrochemical industries. In addition, used oil filters contain reusable scrap metal that can be used as waste by steel producers.
What is Professional Oil Refining Equipment
Now that you understand the differences between oil recycling and oil refining and the benefits of waste oil refining. You must curious about what the professional oil refining plant is. First, we will introduce to you the manufacturers of specialized waste oil refining equipment. Yangjiang is one of the most famous producers of oil refining plant in Chongqing, located in the Jiulongpo District of Chongqing. Yangjiang has its own research and development team to research and produce different types of oil refining machines. Yangjiang produces different oil refining machines, such as lube oil re-refining plant, engine oil refinery, waste oil re-refining plant and so on. Different types of oil refineries can process different types of waste oil. Yangjiang produces equipment refining waste oil with high efficiency and low refining cost. In addition, yangjiang also has its own factory to produce products developed by the independent research and development team, and the product quality is trustworthy.
Secondly, yangjiang produces a variety of oil refining machines that have many advantages, worthy of consumer trust. The first point is that the refining equipment is easy to operate and the operation cost is low, so it only needs one or two workers to operate the large oil refining equipment perfectly. The second point is environmental protection, without secondary pollution. The machine recycles spent gasoline, diesel, engine oil, rubber oil and other lubricants for clean, reusable oil. The third point is that the oil recovered by the oil refiner is a high-quality product without any discoloration caused by oxidation or any bad smell.
We have introduced a lot of details about the oil refining machine, if you have any questions, please feel free to contact us. For more details, please visit the Yangjiang website. www.oilrecyclingplant.com
In daily life, tens of thousands of waste oils are constantly produced every day. This waste oil needs to be treated before it can be used in cars again. This not only protects the environment, but also saves costs. So now we all know that there are several ways to recover used oil. The first is an oil recycling method, which uses oil recycling plant to process waste oil to obtain a clean base oil. The second method is the oil refining method, that is, using oil refining equipment to perform a series of treatments on waste oil to obtain a base oil that can be reused. In addition, some refining equipment also has re-refining technology, so that the quality of the recovered oil is better and meets the use standards. So what is the main difference between oil recycling and oil refining?
Oil Refinery – The Removal of Soluble and Insoluble Impurities
Unlike recycled oil, where only soluble impurities such as heavy metals and dirt are removed. The oil refining system includes extensive processing, filtration, distillation and dehydration to remove both soluble and insoluble contaminants.
When the workers are finishing used oil refining process, additives are removed through chemical processing, which creates an un-additized base oil that can then be distilled to remove any remaining water or additional impurities. A dehydrating process removes residual light fuel, ethylene glycol, and a vacuum distillation step removes the fraction of oil suitable for reuse as lubricating oil. This fraction of oil undergoes hydro treating that further removes remaining polymers and chemicals.
Because re-refined oil goes through the same oil refining and distillation process as the crude oil that later becomes virgin, it can be as high of quality if not higher than virgin. Re-refining waste oil is environmentally friendly and requires significantly less energy to produce than virgin. Re-refined motor oils can be refined again and again, keeping them in circulation versus becoming waste products.
We have introduced a lot of details about the oil refining machine, if you have any questions, please feel free to contact us. For more details, please visit the Yangjiang website. www.oilrecyclingplant.com
