AMD Zen4 family will be launching two brand new platforms next year, AM5 for Ryzen Raphael and SP5 for EPYC Genoa, both of which offering compatibility with the new Zen 4 core architecture. Now AMD cpu coolers for the upcoming platforms have started to be listed by vendors such as Lori Cooler who has provided industrial-grade cooling solutions for both families.
AMD launches EPYC SP5 and Ryzen AM5 Industrial CPU coolers compatible with Zen 4 Genoa and Zen 4 Raphael chips
Lori cooler is a Chinese cooling solutions provider and cpu cooler manufacturer and produce industrial-grade coolers for AMD and Intel CPUs. The cpu cooler manufacturer has listed down a total of nine CPU coolers, five for AM5 and four for SP5 sockets. Since these are industrial-grade cooling solutions, they don't look as fancy as consumer-grade CPU coolers but they do their job (which is cooling) pretty well. The cpu coolers are listed in both passive and active-cooled options since server environments are generally equipped with lots of airflow coming from the chassis.
The main discussion about this leak is that it lists down both AM5 and SP5 socket types which will be part of the upcoming AMD EPYC and Ryzen platforms. The first processors to hit the platforms are going to be the Raphael with Zen 4 (for AM5) and also Genoa with Zen 4 (for SP5). It looks like some of these cpu coolers were part of the 3D Renders that were leaked out in Gigabyte's docs last month.
AMD AM5 (LGA1718) Socket Details:
The AM5 LGA 1718 socket will have 1718 pins arrange in the LGA (Land Grid Array) format. As for TDP requirements, the AMD AM5 CPU platform will feature six different segments starting with the flagship 170W CPU class which is recommended for the liquid coolers (280mm or higher). It looks like it will be an aggressively clocked chip with higher voltages and with CPU overclocking support. This segment is followed by 120W TDP CPUs with a high performance air cooler recommended. Interestingly, the 45-105W variants are listed as SR1/SR2a/SR4 thermal segments, which means when running in a stock configuration they require standard heat sink cooling solutions and therefore don't need much else to keep them cool.
The AM5 coolers listed by the Lori cooler which is professional cpu cooler manufacturer have a maximum thermal dissipation power of 240W (active) and 210W (passive).
AMD AM5 1U-N1
Best AMD AM5 Passive 1U Server Vapor Chamber Cpu Cooler
AMD AM5 2U-N3
Lori Amd Am5 Narrow 2U Passive Server Cpu Vapor Chamber Cooler
All Lori AMD AM5 socket Cpu Coolers have been fully tested and validated by Lori to ensure the best quality and cooling performance, and also we have a stock, fast delivery, If you are looking for AMD AM5 cpu coolers? please contact Lori cooler to buy.
AMD SP5 (LGA6096) Socket Details:
The AMD SP5 LGA6096 socket will have 6096 pins arrange in the LGA (Land Grid Array) format. This will be the biggest cpu socket to date that AMD has ever designed with 2002 more pins than the existing LGA4094 socket. We’ve already listed the dimensions of this SP5 socket above so let's talk about its power ratings. It looks like the SP5 LGA 6096 socket will have a peak power of up to 700W, lasting only 1ms, the peak power at 10ms is rated at 440W while the PCC's peak power rating is 600W. If the cTDP is exceeded, then the EPYC chips featured on the AMD SP5 LGA 6096 socket will return to all these limits within 30ms.
The SP5 Cooler listed by the Lori cooler as follows.
AMD SP5 2U-K21
Amd Socket Sp5 Passive 2U Server Cpu Cooler
All Lori AMD SP5 socket Cpu Coolers have been fully tested and validated by Lori to ensure the best quality and cooling performance, and also we have a stock, fast delivery, If you are looking for AMD SP5 cpu coolers? please contact Lori cooler to buy.
All Lori AMD SP5 socket Cpu Coolers have been fully tested and validated by Lori to ensure the best quality and cooling performance, and also we have a stock, fast delivery, If you are looking for AMD SP5 cpu coolers? please contact Lori cooler to buy.

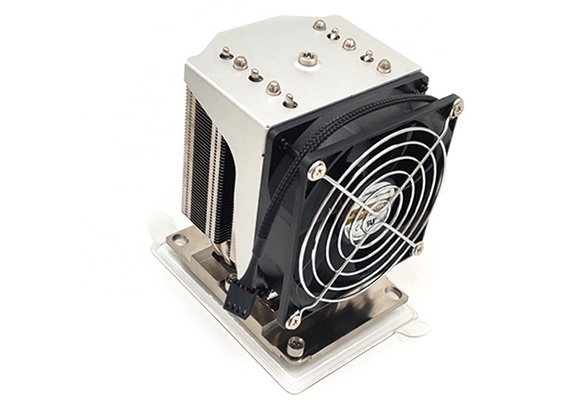

The Supermicro 4U Active CPU Heat Sink, which also known as the SNK-P0070APS4. In itself, this Supermicro 4U CPU Active Heat Sink is a simple unit that keeps things basic. It is built to work and not look pretty. After all, it is designed for use in rack servers. In fact, The Active CPU Heat Sink is designed for Supermicro’s X11 generation general 4U server & workstations, but that doesn’t limit you to them. Of course, you can use it for any system you build in which it will fit. The only demand is that the motherboard you’re using has the narrow mounting mechanism.
This 4U Active CPU Heat Sink supports a TDP of up to 205W, which also includes all currently available Intel Xeon Scalable processors.
The attached cooling fan is a 4-pin PWM model with a fan rotation speed of up to 3800 RPM. With such fan speeds, it’s clear that it won’t be the most silent cpu cooler on the market. On the other hand, it has impressive results. But in terms of noise generation, the fan is rated for up to 38 dBA.
What are Heat Sinks Used For?
Heat sinks are used in electronic equipment and components to provide the auxiliary cooling needed to prevent components from overheating. These components are designed and optimized to ensure that the electronics operate within the temperature range provided by the manufacturer.
Factors of heat sink design
1. Thermal Resistance
2. Material
3. Shape, Arrangement, Size, and Location of Heat Sink Fins
4. Heat Sink Fin Efficiency
5. Thermal Interface Material
6. Heat Sink Attachment Methods
Stamping is the cold extrusion of thin sheet metal forming process, used to make stamping heat sink sheet metal is mainly copper and aluminum. The stamping fin heat sink is mainly welded by stamed fins and base plate.
Difference between stamping heat sinks and laser-cut heat sinks
Compared with the stamping process, the cost of laser cutting is not too expensive, about 1 cm /0.005 yuan.
Advantages: mainly used for cutting irregular workpiece, small burr, accurate size, low noise,
Disadvantages: low efficiency, one-time equipment cost investment.
The advantages of stamped heat sink are: high efficiency, small investment, easy to grasp the technology,
Disadvantages: big burr, big production noise, can not be a single impulse shaped.
Lori produces all kinds of hardware stamping parts, stamped fin heat sink , suitable for a wide range of electrical products, electronic components of stamping parts. Can be customized by drawing, unit price according to the number of customers, specifications, appearance, materials and other requirements. Welcome to our customers!
